Home Network Upgrades and Improvements: Real Costs, Smart Choices, and What Actually Works

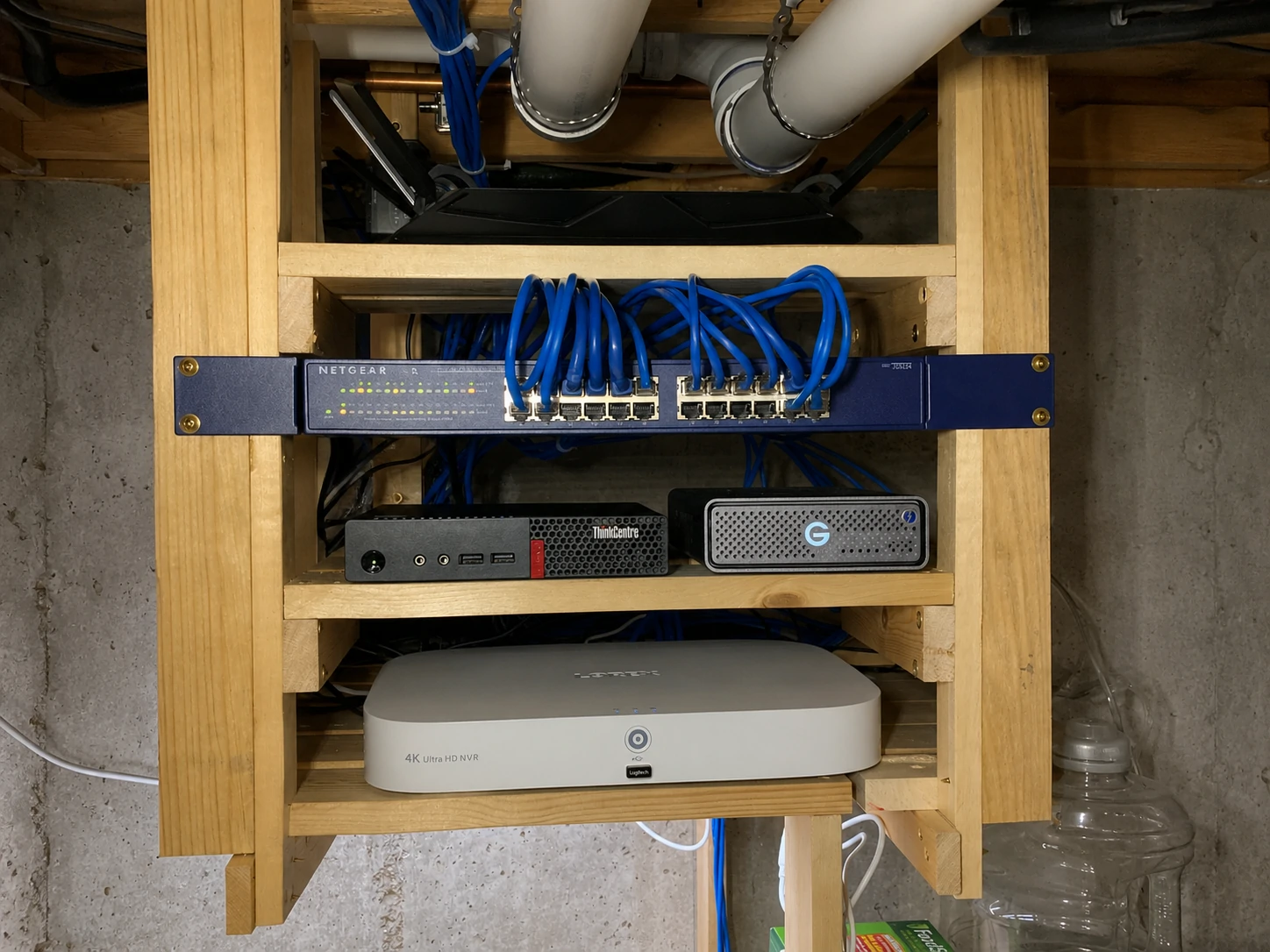

Last week I replaced my ISP-provided router, installed a 24-port gigabit switch, and ran Ethernet cable to two more rooms in my house. Total cost: $138. Not a rough estimate. That’s the actual receipt.

The performance difference was immediate. Devices that used to fight over bandwidth stopped fighting. My smart home cameras — all eleven of them — stopped dropping. The NVR stopped buffering. My home office, which had been running on sketchy Wi-Fi for two years, finally had a stable wired connection.

And the frustrating part? None of it was complicated. It just required knowing what to do and in what order.

Home network upgrades typically involve replacing your ISP router with a dedicated device, adding a network switch for wired connections, running ethernet cable to key rooms, and repurposing old hardware as wireless access points. Costs range from $50 to $500+ depending on scope — but a genuinely good upgrade for a medium-sized home costs $100–$200 done right.

🏆 Best Takeaway: The single biggest improvement most homeowners can make is replacing their ISP-provided router/modem combo with a dedicated router and running ethernet cable to the rooms where it matters most. Everything else — mesh systems, Wi-Fi 7, fancy switches — is secondary to getting that foundation right. And it doesn’t have to cost more than $150.

Quick Summary: What This Guide Covers

✅ Replace your ISP router first — it’s almost always the weakest link
✅ Add a 24-port unmanaged switch for under $70 — more useful than an 8-port
✅ Run Cat5E or Cat6 ethernet to bedrooms, offices, and entertainment areas
✅ Re-purpose your old router as a free wireless access point
✅ Segment smart home devices onto a separate network for security
✅ Budget realistically: a solid upgrade for a medium home costs $100–$300 DIY
✅ Cat5E is still sufficient for most homes — stop reading Cat6A marketing copy

Pre-Upgrade Checklist: Do This Before You Buy Anything

Count all connected devices in your home (use your router’s admin page or the Fing app)
Run a speed test at the router and at problem areas — compare the gap
Identify your actual pain points: dead zones? Dropped devices? Slow wired connections?
Check if your ISP modem supports bridge/passthrough mode
Decide your scope: router only? Switch? Full ethernet runs?
Set a realistic budget before you open Amazon
Check for any existing Cat5E or Cat6 cable already in your walls

Why Your Home Network Probably Needs More Than a New Router

Most people buy a new router when their Wi-Fi gets slow. That’s understandable — it’s the most visible piece of hardware. But in a lot of cases, the router isn’t actually the problem. Or it’s one of the problems, but fixing it alone doesn’t do much.

The honest answer is that a home network is a system. The router, the switch, the cabling, the access points — they all affect each other. A great router on a flat, Wi-Fi-only network with 40+ IoT devices will still feel sluggish.

The Real Reason Your Wi-Fi Feels Slow (It’s Not Always the Router)

Before you spend a dollar, figure out which problem you actually have.

ISP speed problem: You’re paying for 500 Mbps but your speed test at the router shows 120 Mbps. That’s an ISP issue, not a network issue. No router swap will fix it.

Wi-Fi coverage problem: Your speed test at the router is fast, but it drops to 20 Mbps across the house. That’s a coverage problem — you need access points or ethernet, not a faster router.

Network architecture problem: Speeds are fine but devices drop constantly. Smart devices conflict with each other. Streaming stutters even on wired connections. That’s a network design problem — usually a combination of ISP hardware limitations and no device segmentation.

Most homeowners with a real complaint fall into category two or three. A $200 Wi-Fi 7 router doesn’t fix either of those.

Signs Your Home Network Is Actually Holding You Back

You probably don’t need a diagnosis if you’re experiencing any of these:

Wi-Fi dead zones on upper floors or far rooms
Smart home cameras constantly going offline
Gaming or video calls dropping every 20–30 minutes
4K streaming that buffers even though you have fast internet
Wired devices that feel slower than Wi-Fi (often a bad cable or ISP modem limitation)
Smart speakers that can’t reach devices across the house

The last one trips people up. Most homeowners assume speed is the problem. Stability and coverage are almost always the real issue.

The Equipment Most Homeowners Don’t Know They’re Missing

A properly built home network has four components:

A router — manages traffic between your home and the internet
A network switch — expands wired port capacity
Ethernet cabling — gives wired connections to key rooms
Wireless access points — extends Wi-Fi to dead zones

Most homes have only the first one, and it’s usually the ISP-provided combo unit that does everything adequately and nothing well.

Understanding Your Home Network Before You Upgrade Anything

Spending money on the wrong upgrade is worse than spending no money at all. Spend twenty minutes understanding what you have before you open a cart.

Router vs. Switch vs. Access Point — What Each One Actually Does

These get confused constantly. Here’s the short version.

Router: The brain. It connects your home to the internet, assigns IP addresses to devices, and manages traffic flow. One router is all you need.

Switch: The mailroom. A switch doesn’t route internet traffic — it just gives you more wired ethernet ports. Your router might have 4 LAN ports. A 24-port switch gives you 24. Connect one cable from your router to the switch, and the switch handles everything from there.

Access Point (AP): A wireless extension. An AP connects to your network via ethernet and broadcasts Wi-Fi in a new location. It does not route traffic. Think of it as a Wi-Fi antenna that borrows your router’s internet connection.

A mesh system node is essentially a wireless access point with a wireless backhaul. The problem is “wireless backhaul” — that means the node is communicating with the main router over Wi-Fi, which cuts available bandwidth and introduces latency.

Mapping Your Current Network (The Step Everyone Skips)

Download the Fing app on your phone and run a network scan. Or pull up your router’s admin page — it shows every device currently connected.

Do this before you buy anything. Most people are surprised by what they find. Twenty-two devices when they thought they had twelve. Smart bulbs they forgot about. A camera that’s been offline for six months still holding a DHCP lease.

This step takes ten minutes. It’ll save you from buying the wrong hardware.

Why Your ISP’s Combo Router/Modem Is Limiting You

There’s a reason ISP routers never get good reviews on Reddit — and it’s not just brand bias.

ISP-provided combo units are built to serve ISP network management priorities. They’re designed to be cheap to manufacture, easy to support remotely, and serviceable across millions of customers. They are not designed to give your specific home the best network performance possible.

Common limitations of ISP-provided equipment:

No VLAN support (can’t segment IoT devices)
Limited QoS controls
Locked firmware — you can’t update it independently
Weak Wi-Fi radios compared to dedicated hardware
Double NAT issues when you try to add your own router

Putting your ISP modem in bridge mode — and using your own dedicated router — is a prerequisite for almost every meaningful upgrade. More on that below.

Home Network Upgrade #1 — Replace Your Router (The Highest-Impact Change)

This is the most impactful single upgrade. The right router gives you VLAN support, QoS control, proper firewall rules, and stable DHCP management for a house full of devices. The wrong router just looks good on a spec sheet.

Consumer Router vs. Mini PC Router — Which Is Right for You?

The honest comparison no manufacturer wants you to see:

Router Type	Typical Cost	Performance	DIY Difficulty	Best For
ISP-provided combo unit	$0 (rental fee)	Basic	None	Renters, minimal devices
Consumer router (TP-Link, Asus)	$60–$300	Good	Low	Most homeowners
Mini PC + OPNsense	$60–$150 (used)	Excellent	Medium	Tech-comfortable DIYers
Ubiquiti Dream Machine	$200–$500	Excellent	Medium	Prosumer setups
pfSense appliance	$150–$400	Excellent	Medium–High	Advanced users

Consumer routers win on ease. Unbox, plug in, follow the app. Done in 15 minutes. That genuinely matters if you don’t want to spend an afternoon on networking documentation.

Mini PC + OPNsense wins on cost-to-performance. A refurbished Lenovo ThinkCentre M910q with a dual-NIC card costs around $68 used — and running OPNsense on it gives you enterprise-grade firewall features, DNS-level ad blocking, VLAN support, and connection tracking that a $150 consumer router simply can’t match.

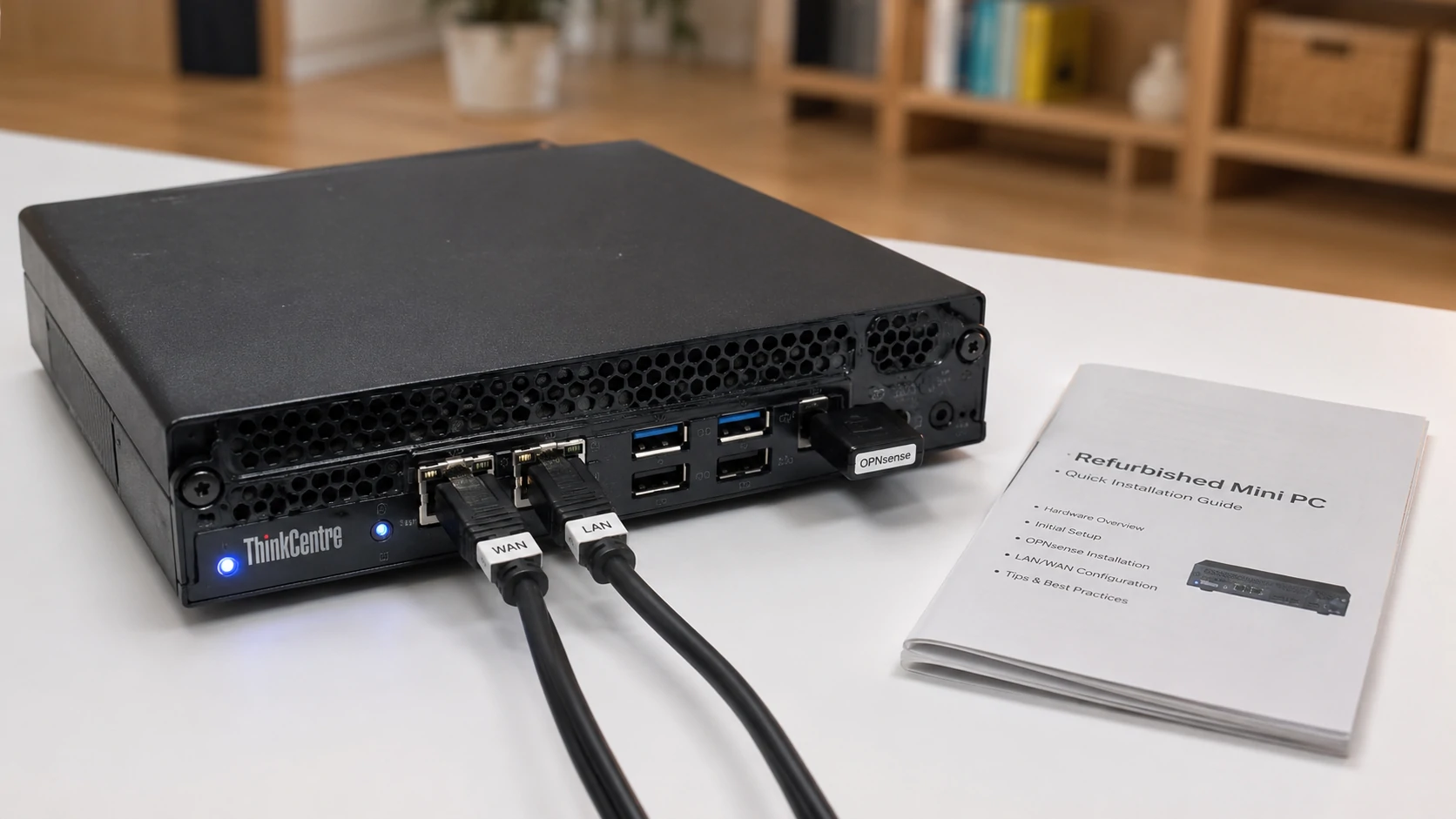

Using a Refurbished Mini PC as a Home Router (OPNsense/pfSense)

The $68 mini PC that outperformed my $150 consumer router — and why that actually makes sense.

OPNsense and pfSense are both open-source router/firewall operating systems that run on commodity hardware. They’re used in small businesses and home labs. The performance-per-dollar case for running them on a used mini PC is genuinely compelling.

🔧 Expert Insight: OPNsense and pfSense both run on commodity hardware because the networking software does all the heavy lifting. A 10-year-old mini PC with adequate RAM will outperform a brand-new consumer router at routing tasks. The hardware matters less than most people think.

The trade-off here is real: OPNsense has a learning curve. If you’ve never touched a firewall before, expect to spend a weekend on it, not an afternoon. The documentation is good, the community is helpful, but it is not plug-and-play.

⚠️ Warning: Don’t put your new router behind your ISP modem without understanding double NAT. If the ISP modem is still acting as a router and your new device is also routing, you’ll get confusing network behavior that’s hard to diagnose. Put the ISP device in bridge/passthrough mode first.

What to Expect From OPNsense as a First-Time User

The first hour is rough. The interface is not designed for beginners. You’ll look at the dashboard and wonder why there are fifteen menu categories for a home network.

After that first hour — after the setup wizard runs and devices start appearing — it clicks. You realize you have a proper firewall log. You can see every DNS query. You can shape traffic per device. I blocked my smart TV’s phone-home traffic inside five minutes once I figured out traffic shaping.

The Lenovo ThinkCentre was slower to boot than a consumer router, but after it was up, the connection stability was noticeably better — especially with 40+ devices connected. No more DHCP conflicts. No more random drops.

Putting Your ISP Modem in Bridge Mode — The Missing Step

Most upgrade guides skip this completely. It’s a critical step.

Bridge mode (sometimes called “passthrough mode”) tells your ISP’s modem to stop acting as a router. It just passes the internet connection through to your own device without interfering. Without this, you have two devices competing to manage the same traffic — double NAT — and your new router can’t work properly.

How to check: Log into your ISP modem’s admin page (usually 192.168.100.1 or similar). Look for “bridge mode,” “passthrough,” or “IP passthrough” in the settings. Enable it, enter your new router’s MAC address if prompted, and reboot both devices.

Important: Not all ISP modems support bridge mode. Some locked firmware versions disable it. If yours doesn’t, ask your ISP for a modem-only replacement, or put your new router in the DMZ — a partial solution that avoids double NAT for the primary device.

How to Set Up a Mini PC as Your Home Router

Download OPNsense ISO and write it to a USB drive (use Balena Etcher)
Install two NICs in the mini PC — or use a USB-to-ethernet adapter for the WAN port
Boot from USB and complete the OPNsense text-based installer
Connect the WAN port to your ISP modem (in bridge mode)
Connect the LAN port to your network switch
Log into the OPNsense web GUI at 192.168.1.1
Run the setup wizard — assign WAN and LAN interfaces, configure DHCP
Update OPNsense to the latest version immediately
Configure DNS resolver — NextDNS or Cloudflare (1.1.1.1) are both solid
Run a speed test, verify all devices connect, check the DHCP lease table

What to Actually Look for in a Consumer Router (Beyond the Marketing Numbers)

If OPNsense isn’t for you, here’s what actually matters in a consumer router:

Ignore: Maximum theoretical speeds (AX6000, BE19000 — marketing theater). Wi-Fi 7 unless your devices actually support it.

Focus on:

CPU performance and RAM — handles more simultaneous device connections without dropping
VLAN and guest network support — essential for IoT segmentation
Firmware update history — manufacturers that stop updating firmware after 18 months are a security problem
Number of ethernet LAN ports — 4 is minimum, 6+ is better
MU-MIMO and OFDMA support — matters for houses with many simultaneous Wi-Fi devices

The TP-Link AX5400 and Asus RT-AX86U sit in a solid mid-range zone. Both have legitimate firmware support histories, proper VLAN support, and strong Wi-Fi radio hardware. Neither costs more than $150 on sale.

Home Network Upgrade #2 — Add a Network Switch (More Ports, More Stability)

I almost bought an 8-port switch. One port-count calculation convinced me to get 24.

Do You Actually Need a Network Switch Right Now?

If you have three or four wired devices, honestly — the router’s built-in ports might cover you. Fix the router situation first.

But if you’re planning to run ethernet to multiple rooms, connect a NVR, add PoE access points, and wire up a TV and desktop in the same room — you need a switch. And you probably need more ports than you think.

Managed vs. Unmanaged Switches — What Homeowners Actually Need

Switch Type	Port Count	Cost	Managed?	PoE?	Best Use Case
Netgear GS308	8-port	$25–35	No	No	Small setups, single room
Netgear GS324	24-port	$65–80	No	No	Whole-home wired setup
TP-Link TL-SG1016D	16-port	$40–55	No	No	Medium homes
Netgear GS308EP	8-port	$70–90	No	Yes	PoE cameras/APs
TP-Link TL-SG2428P	28-port	$150–200	Yes	Yes	Prosumer smart home

For most homes — unmanaged is fine. Unmanaged switches just work. Plug devices in, they get network access. Zero configuration.

You only need a managed switch if you want to implement VLANs to segment IoT devices across physical ports. If you’re running everything on a single flat network or segmenting at the wireless SSID level only, a basic unmanaged gigabit switch handles it cleanly.

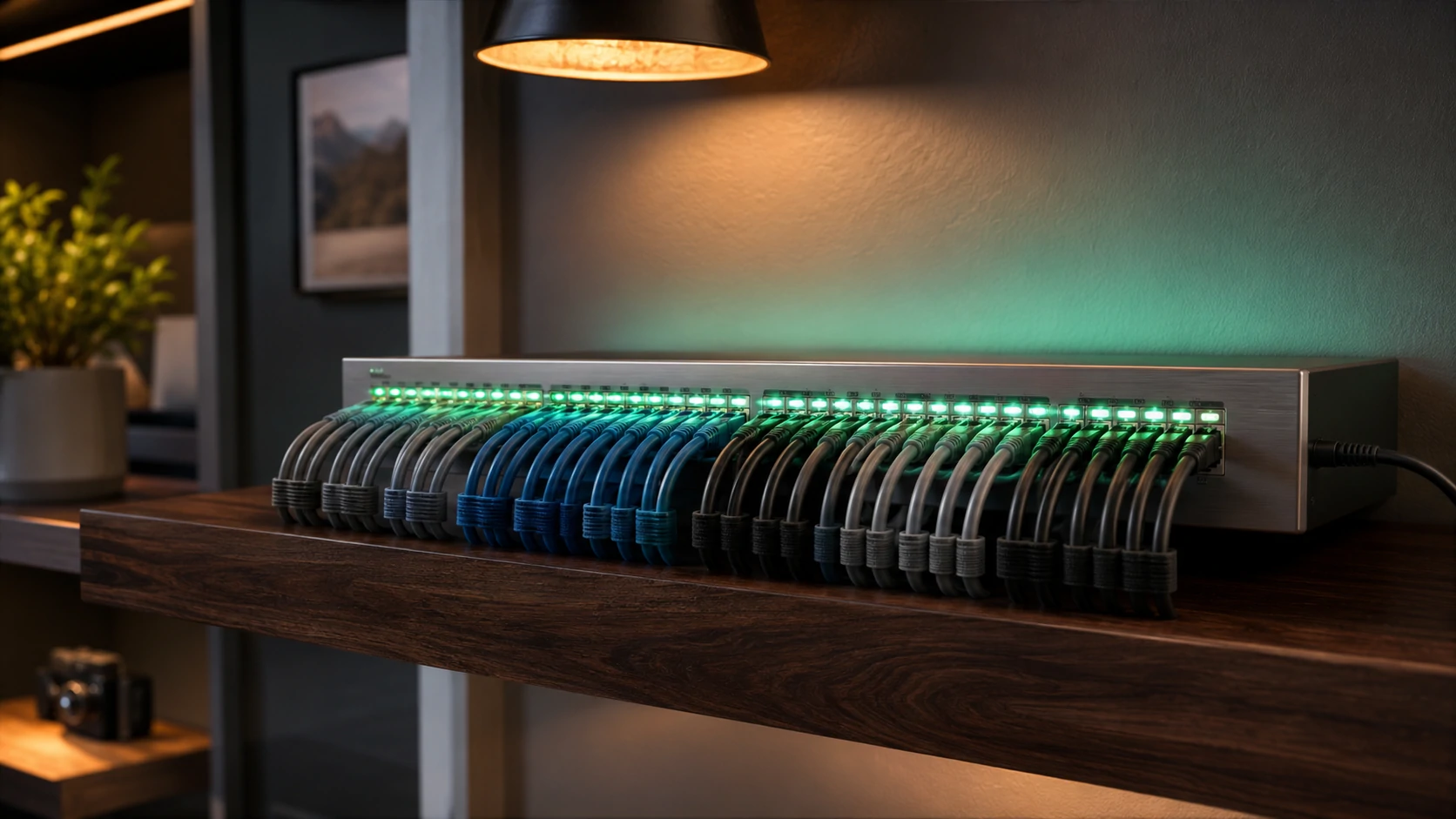

Why a 24-Port Switch Is Often Better Value Than an 8-Port

Do the math. An 8-port Netgear switch costs around $35, which is $4.38 per port. A 24-port Netgear switch costs $69.99 — that’s $2.92 per port. You’re paying roughly 30% less per port for the 24-port version and getting three times the capacity.

Modern smart homes regularly connect 30–50+ devices. Between phones, tablets, smart TVs, gaming consoles, cameras, smart speakers, smart bulbs, thermostats, and NVRs — you hit 8 ports faster than you expect.

Buy the 24-port once. Don’t buy the 8-port twice.

PoE Switches — Only Worth It If You’re Powering APs or Cameras

Power over Ethernet lets you power devices — access points, IP cameras, VoIP phones — through the ethernet cable itself, no separate power adapter needed. If you’re using PoE-powered access points like the TP-Link EAP670 or Ubiquiti U6-Lite, a PoE switch is genuinely useful. It eliminates power adapter runs to each AP location.

If you’re not powering any PoE devices, skip it. PoE switches cost significantly more per port for a feature you won’t use.

💡 Most homeowners overlook this: Ethernet cable runs need to be tested before you close up walls. A $25 cable tester takes 30 seconds per run. Finding a bad crimp after drywall is installed is an expensive problem.

Home Network Upgrade #3 — Run Ethernet Cable Through Your House

The cable run that took 45 minutes ended up being a 3-hour project. Here’s what I’d do differently.

No wireless upgrade replaces a wired connection. That’s not an opinion — it’s physics. Ethernet doesn’t deal with interference, signal loss, or competing devices on the same spectrum. If you can wire a room, wire it.

Cat5E vs. Cat6 vs. Cat6A — Settle This Before You Buy Cable

Cat5E is not a compromise. It is the right cable for almost every home. Stop reading Cat6A marketing copy.

Cable Type	Max Speed	Max Distance	Cost (per foot)	Shielding	Best For
Cat5E	1 Gbps	328 ft (100m)	$0.10–0.15	Unshielded	Most homes — still excellent
Cat6	1 Gbps (10G at 55m)	328 ft	$0.15–0.25	Optional	Future-proofing consideration
Cat6A	10 Gbps	328 ft	$0.30–0.50	Shielded	High-density or prosumer setups
Cat7	10 Gbps	328 ft	$0.40–0.60	Fully shielded	Rarely needed for home use

Since most home internet plans max out well below 1 Gbps, Cat5E is the bottleneck in essentially zero real-world home scenarios. Your ISP connection is almost certainly the limiting factor, not your cable.

Cat6 makes sense if you’re running cable near heavy electrical interference (in conduit alongside AC wiring, near industrial equipment) or if you’re planning to deploy 2.5G switches in the next few years. Cat6A makes sense in high-density prosumer setups. For a typical three-bedroom home — Cat5E is fine.

The Real Reason People Overbuy on Cable

Cable packaging uses marketing language that implies Cat5E is outdated. It isn’t. The physics of signal transmission at gigabit speeds over 100 meters haven’t changed. Cat5E was engineered to those specs and still meets them perfectly.

The Cat6-or-bust advice you see in forums is often from people who installed 10G networking at home, which is a real but rare use case. If your router is gigabit and your switch is gigabit, Cat5E does not limit you. That’s just true.

Planning Your Ethernet Runs Before You Drill a Single Hole

Poor planning is how a 45-minute cable run becomes a 3-hour one.

Before drilling anything:

Sketch your floor plan — mark every room that needs an ethernet drop
Identify your central wiring point (basement utility room, network closet, hallway panel)
Count your total planned drops — this determines switch port needs
Measure approximate cable lengths — add 30% for routing overhead
Identify obstacles: concrete floors, finished walls, HVAC runs, fire blocking

One mistake people make is planning a “straight line” route when the actual physical path through walls, across floors, and around obstacles can double the cable length. Measure real paths, not air distances.

Running Cable Through a Finished Home — What No Guide Tells You

Running cable through a third-floor finished wall took four times longer than expected. I needed a fish tape, a 5-foot drill bit extension, and more patience than I thought I had.

The challenge isn’t drilling holes. The challenge is hitting fire blocking — horizontal 2×4 studs inside walls that stop cable from traveling vertically. Older homes, in particular, can have fire blocking every few feet. You can’t predict where it is without opening the wall.

The tools you actually need (and only these):

Fish tape or fish sticks — for pulling cable through closed walls
Extended drill bits — for drilling through top and bottom plates
Cable tester — non-negotiable; test every run before closing walls
Keystone punch-down tool — for terminating at wall plates cleanly

Step-by-Step: Planning and Running Ethernet in a Finished Home

Sketch your floor plan — mark exactly where each Ethernet drop needs to go
Identify your central wiring point (basement, utility closet, or network shelf)
Locate wall studs with a stud finder before drilling — avoid cutting into structure
Drill entry and exit holes — typically through top or bottom wall plates
Use a fish tape or fish sticks to pull cable through the wall cavity
Leave 12–18 inches of slack at each end (critical — don’t cut it short)
Terminate with keystone jacks or RJ45 connectors
Test every run with a cable tester before closing walls or stapling cable
Label both ends of every cable immediately — future you will thank present you

⚠️ Warning: Keep ethernet cable at least 6 inches from AC electrical wiring when routing in the same wall or conduit. EMI from electrical lines can cause signal interference at high cable densities. Cat5E and Cat6 are unshielded — proximity to power runs matters.

When to DIY and When to Hire a Low-Voltage Electrician

Clear signals to hire a pro:

Multi-story older homes with plaster walls and no accessible attic
Brick or concrete construction where drilling is specialized work
More than 6 drops in a time-constrained situation
Any run that requires opening finished drywall and you’re not comfortable patching it

DIY tool cost: ~$50–80 total (fish tape, bit extension, cable tester). Pro installation typically runs $100–200 per run, depending on complexity and region.

If you have two straightforward drops in a single-story home with attic access — do it yourself. If you have eight drops across three finished floors — get quotes. The math sometimes favors the pro.

Re-purposing Old Hardware as Wi-Fi Access Points — The Smartest Cheap Upgrade

That Netgear router I was about to throw away now covers my entire upper floor as a dedicated access point. It’s doing more useful work now than it ever did as a primary router. Total cost: $0.

Why a Wired Access Point Beats a Wireless Mesh Node Every Time

Feature	Wired Access Point	Mesh Node
Connection to router	Ethernet cable (reliable)	Wireless backhaul (variable)
Backhaul reliability	★★★★★	★★★☆☆
Setup complexity	Medium	Low
Cost	$80–$200 (or $0 with old hardware)	$100–$250/node
Performance stability	Excellent	Good (varies by mesh system)
Can repurpose old router?	Yes	No
Best for	Multi-story homes with ethernet	Rentals, no cable runs possible

Most mesh system buyers don’t realize they’re paying for a wireless backhaul that a $10 ethernet cable would eliminate.

A mesh node with a wireless backhaul splits its radio capacity between serving your devices and communicating with the main router. That’s a real performance cost. A wired AP uses the full ethernet connection for backhaul and dedicates all its radio capacity to your devices.

🔧 Expert Insight: When placing wireless access points, the goal isn’t maximum range — it’s consistent signal overlap between APs. A -70 dBm signal at the edge of your AP’s range causes more problems than a dead zone. Better to have APs closer together with stronger signals than one AP stretching to cover a whole floor.

How to Turn Your Old Router Into a Wireless Access Point (Step-by-Step)

💡 Most homeowners overlook this: When repurposing an old router as an AP, the DHCP server must be disabled — not the DHCP client. Getting these confused results in two devices fighting to assign IP addresses to your whole network, which takes down everything connected.

Factory reset the old router (usually a pinhole button held for 10 seconds)
Log into the admin page and disable the DHCP server — critical step
Assign the old router a static IP on your existing network (e.g., 192.168.1.2)
Connect an ethernet cable from your switch to a LAN port on the old router — not the WAN port
Set the SSID and password to match your main network (enables seamless roaming)
Set a different Wi-Fi channel from your main router — non-overlapping (channels 1, 6, or 11 for 2.4GHz)
Test connectivity from the area you’re trying to cover
Verify no DHCP conflicts in your router’s admin panel

The WAN port error is the most common mistake. I made it myself — connected via the WAN port the first time. Everything on that side of the network had no internet access. Took 20 confused minutes to figure out what happened.

⚠️ Warning: Access points on the same SSID as the router need careful channel selection. Two APs blasting the same channel cause more interference than the dead zone they were meant to fix.

Access Point Placement — Where You Put It Matters More Than Which One You Buy

The temptation is to center the AP in the middle of the floor. That’s often wrong.

The goal is coverage overlap, not maximum range. You want the signal from your AP and the signal from your main router to overlap enough that devices can roam smoothly between them. An ideal overlap zone is 10–20% of coverage area — enough for a seamless handoff.

If your dead zone is at one end of the house — put the AP near that end, not in the middle. A signal at -55 dBm at the far corner is far better than -72 dBm across a longer distance from a centered AP.

Common bad placements: in a closet (walls absorb signal), directly behind the TV (interference from display electronics), at floor level (signals radiate outward, not down).

Network Security After a Home Network Upgrade (Most People Skip This)

You just added new hardware, new firmware, new network segments. It’s the worst time to ignore security. Most homeowners do exactly that.

Why You Need a Separate Network for Smart Home Devices

🔧 Expert Insight: The number of smart home devices matters more than their individual bandwidth consumption. A home with 40 IoT devices is primarily challenged by connection count and DHCP management — not raw throughput. A router with a strong CPU and adequate RAM handles this better than a spec-sheet speed leader.

Smart home devices — cameras, smart bulbs, thermostats, voice assistants — often have poor security. Their firmware is infrequently updated by manufacturers, default credentials are often weak, and many communicate with external servers in ways you can’t audit.

⚠️ Warning: Adding 20+ IoT devices to a flat home network without VLAN segmentation is a genuine security risk. A compromised smart plug can be used as a pivot point to reach your laptop, NAS, or other networked devices.

The simplest solution that doesn’t require a managed switch: create a separate 2.4GHz SSID (e.g., “Home-IoT”) and put all your smart home devices on it. On OPNsense, you can firewall this SSID to allow internet access but block it from reaching your main LAN. On most consumer routers, a guest network with “client isolation” achieves something similar.

💡 Most homeowners overlook this: Smart home devices — cameras, smart bulbs, thermostats — use far less bandwidth than most people expect. Network stability and coverage matter far more than raw speed for these devices. An old router with stable Wi-Fi serves them better than a new router with spotty coverage.

The Two Minutes of Security Setup Most New Network Owners Skip

Change default admin credentials. On every device you added. Router, switch (if managed), and access points.

Default credentials for common hardware are published online and known by anyone who wants to try them. “admin / admin” is a starting point for automated credential attacks. This is a five-minute task that matters more than any firewall rule.

Guest Network Setup — More Important Than It Looks

A guest network does two things: it isolates visitor devices from your main network, and it gives you a second SSID to segregate devices you don’t fully trust.

Smart TVs, game consoles, and IoT devices you want internet access but not full LAN access — the guest network handles them cleanly on most consumer routers. It’s not as granular as a VLAN, but for most homes it’s sufficient.

Enable it. Set a separate password. Use it.

Using Your Router USB Port for Shared Storage (The Forgotten Feature)

Many mid-range and high-end consumer routers include a USB port for attaching an external drive and sharing it over the network. Most people have no idea it exists.

Netgear ReadyShare and Router USB Storage — What It Can and Can’t Do

Netgear calls it ReadyShare. Other brands have similar features under different names. The concept is straightforward: plug a USB drive into your router, and it appears as a shared network folder accessible from any device on your network.

What it does well:

Basic file sharing for documents, photos, media
No dedicated server hardware required
Zero additional cost if you have an external drive

What it can’t do:

True simultaneous multi-user access (one connection at a time, typically)
RAID redundancy (one drive fails, files are gone)
Fast media streaming from large uncompressed files
Reliable 24/7 uptime under heavy load

For casual photo sharing and basic document access across household devices — it’s genuinely useful. For anything more demanding, it runs into limits quickly.

When USB Router Storage Is Enough vs. When to Get a Real NAS

If you’re sharing a folder of vacation photos between two or three family members — router USB storage is fine.

If you’re streaming 4K Plex libraries, running Time Machine backups from two Macs, hosting a shared document repository for a home business, or storing security camera footage — you need a proper NAS. The Synology DS223j with a pair of WD Red drives is the most sensible entry-level NAS for home use. It’s not cheap ($200–300 for the unit plus drives), but it’s a different category of device.

Real-World Home Network Upgrade Costs — Three Budget Tiers

$138 for a complete network overhaul. Here’s the exact breakdown.

Budget Tier (Under $200 — The Real Homeowner Build)

Component	Option	Cost
Router	Refurbished mini PC (M910q) + OPNsense (free)	$68
Switch	Netgear 24-port unmanaged	$69.99
Access Point	Repurposed old router	$0
Cable	Cat5E (already owned) or 100ft bulk	$0–$15
Connectors/keystones	Basic RJ45 kit	$10–$20
Total		$138–$173

The $138 total project cost isn’t a marketing estimate — it’s the actual receipt. The key to this build is using what you already have: old cable, old router as an AP, free OPNsense firmware on used hardware.

Mid-Range Tier ($200–$500)

Component	Option	Cost
Router	TP-Link Archer AX55 or Asus RT-AX82U	$80–$150
Switch	TP-Link 16-port managed gigabit	$55–$80
Access Point	TP-Link EAP670 or Ubiquiti U6-Lite	$80–$120
Cable	500ft Cat6 bulk + keystones/patch panel	$60–$100
Total		$275–$450

This tier is for homeowners who want plug-and-play simplicity with legitimate performance. The TP-Link EAP670 is a particularly strong value for a dedicated access point — real Wi-Fi 6 performance without the Ubiquiti price tag.

Prosumer Tier ($500+)

Component	Option	Cost
Router	Ubiquiti Dream Machine Pro or pfSense box	$200–$500
Switch	Ubiquiti USW-24-PoE or Netgear managed	$200–$400
Access Points (2–3 units)	Ubiquiti U6-Pro or U6-LR	$200–$500
Cable	Cat6A + structured cabling + patch panel	$150–$300
UPS	APC Back-UPS 700VA	$80–$120
Total		$830–$1,820

💡 Most homeowners overlook this: Power fluctuations can corrupt router firmware and cause hardware failures. A basic APC UPS costs around $80 and protects your entire network stack. This is the most-overlooked purchase in home networking and one of the most cost-effective.

Home Network Myths vs. Reality

Most of the bad advice in home networking comes from outdated information that never gets corrected.

Myth	Reality
”You need Cat6 or Cat6A for a future-proof home network”	Cat5E supports full gigabit speeds for 100m — the bottleneck is almost always your ISP connection, not your cable type
”Mesh systems are always better than access points”	Wired access points outperform wireless mesh on backhaul stability and cost significantly less per node
”Wi-Fi 7 means you can skip ethernet runs”	Wireless technology has always had ceiling performance below wired — ethernet still wins for reliability-critical devices
”A 24-port switch is overkill for a home”	Modern smart homes regularly have 30–50+ connected devices; port capacity matters more than most people expect
”ISP routers are fine for most people”	ISP routers are optimized for ISP network management, not homeowner performance — they often throttle QoS and restrict advanced features
”You need a professional to run ethernet cable”	Most cable runs in a home are DIY-achievable with $30 in tools, patience, and a fish tape — the hard part is planning, not execution

Mistakes Homeowners Make When Upgrading Their Home Network

These are the ones I’ve either made personally or watched others make. All of them waste money or time.

1. Replacing Wi-Fi hardware before diagnosing the real problem New router, same dead zones. Because the problem was AP placement, not hardware generation. Run a speed test first. Understand what you’re solving.

2. Buying a mesh system when wired APs would cost less and perform better Mesh is convenient. It’s also expensive per node and limited by wireless backhaul. If you can run ethernet, run ethernet and buy a dedicated AP.

3. Forgetting to put the ISP modem in bridge mode Double NAT causes unpredictable behavior. This is the most common post-upgrade complaint, and it’s a 5-minute fix that most setup guides never mention.

4. Forgetting to disable DHCP on an old router used as an AP Two DHCP servers on one network hand out conflicting IP addresses and take down the whole network. Every time. Disable DHCP on the secondary device before connecting it.

5. Buying Cat6 when Cat5E would have been fine Marketing won. Your network didn’t need it. Save the money.

6. Not labeling ethernet runs during installation Cat5E and Cat6 look identical in walls. Label both ends the moment you run them. Unlabeled ethernet creates expensive troubleshooting problems years later when you’ve forgotten which cable goes where.

7. Placing access points too close to the main router Overlap is good. Overlap within 10 feet causes interference, not coverage. APs need distance from each other to serve different zones.

8. Never updating firmware after setup An unpatched router is one of the most common home network security vulnerabilities. Manufacturers push security updates — set a calendar reminder for quarterly firmware checks. It takes 10 minutes.

💡 Most homeowners overlook this: Firmware updates on routers and switches aren’t optional. Set a quarterly calendar reminder — it takes 10 minutes and matters more than any hardware upgrade.

9. Putting everything on one flat network with no segmentation A flat network with 40+ devices — including IoT hardware — is a security liability and a performance challenge. A basic IoT SSID or guest network costs nothing to configure.

10. Buying too small a switch and having to buy again The 8-port switch that seemed fine at the time. Then you add another camera. Then a NAS. Then a second AP. Then you’re buying a 16-port switch six months later. Buy the 24-port once.

Home Network Maintenance Schedule — What to Actually Do and When

A network isn’t set-and-forget hardware. This schedule takes roughly 90 minutes per year total.

Task	Frequency	Notes
Router/AP firmware update	Every 3 months	Check manufacturer portal or enable auto-updates
Speed test at router and endpoints	Monthly	Compare against ISP plan — flag any unexplained drops
Check all physical cable connections	Every 6 months	Look for bent, kinked, or partially ejected patch cables
Review connected device list	Monthly	Spot unauthorized devices; flag unknown MAC addresses
Update router admin passwords	Annually	Especially after any household change
Clean dust from equipment	Every 6 months	Overheating shortens hardware lifespan significantly
Review DHCP leases and static assignments	Every 6 months	Remove stale entries from old devices
Review firewall rules (OPNsense/pfSense)	Every 6 months	Remove unused rules, update blocklists
Check UPS battery health	Annually	UPS batteries typically last 2–5 years
Full network audit	Annually	Map all devices, review segmentation, update documentation

Post-Upgrade Maintenance Checklist

Complete this within 24 hours of any new hardware install:

Update router and AP firmware immediately
Change all default admin passwords
Set up guest/IoT network for visitors and smart devices
Label all ethernet runs (both ends)
Photograph or sketch your network diagram
Save a backup of your router configuration
Set a quarterly calendar reminder for firmware checks

Quick Reference — What to Upgrade First Based on Your Situation

START: What's your main problem?
│
├── "Wi-Fi dead zones or weak signal in certain rooms"
│   ├── Have ethernet to that location? → Add wired access point
│   └── No ethernet available? → Mesh node (temporary) or run cable (permanent)
│
├── "Overall slow speeds despite a fast ISP plan"
│   ├── Using ISP-provided router? → Replace it first (biggest single upgrade)
│   └── Using personal router already? → Check for interference, upgrade AP placement
│
├── "Not enough wired ports for my devices"
│   └── Add a network switch (8, 16, or 24-port depending on device count)
│
├── "Smart home devices dropping off constantly"
│   ├── All devices on same network? → Add IoT VLAN or separate 2.4GHz SSID
│   └── Signal too weak at device location? → Add AP or move existing one
│
└── "Want to future-proof the whole setup"
    └── Plan: Replace router → Add switch → Run ethernet → Add APs → Add VLAN segmentation

Frequently Asked Questions About Home Network Upgrades

Q: What is the best way to upgrade a home network? Start by replacing your ISP-provided router with a dedicated router or mini PC running OPNsense. Then add a network switch for more wired ports, run ethernet cable to key rooms, and repurpose old hardware as wireless access points. The whole setup can cost under $200 if you’re strategic about hardware choices.

Q: How much does it cost to upgrade a home network? A basic but effective home network upgrade — new router, 24-port switch, and ethernet runs to 2–3 rooms — can be done for $100–$200 DIY. A mid-range setup with managed switching and dedicated access points runs $300–$500. Prosumer builds with Ubiquiti hardware typically cost $800–$1,500+.

Q: Is Cat5E cable good enough for home networking in 2026? Yes. Cat5E supports full gigabit speeds over standard home cable run distances. Since most home internet plans top out well below 1 Gbps, Cat5E is the bottleneck in essentially zero real-world home scenarios. Cat6 or Cat6A is worth considering only if you’re running near heavy electrical interference sources or planning future 2.5G/10G deployments.

Q: What is the difference between a router and a network switch? A router connects your home to the internet and manages traffic between devices. A switch simply expands the number of wired ethernet ports available — it doesn’t route internet traffic on its own. Think of the router as the postmaster and the switch as the mailroom with more sorting slots.

Q: Should I buy a mesh system or a wired access point? If you can run an ethernet cable to the problem location, buy a wired access point — it will outperform a mesh node on reliability and cost less over time. Mesh systems make sense in rentals or homes where cabling is genuinely impossible.

Q: I replaced my router but Wi-Fi didn’t get faster. What went wrong? Most likely you didn’t put your ISP modem in bridge mode. If the ISP modem is still acting as a router, you now have double NAT — two routers in sequence — which creates conflicts and often caps performance. Access the ISP modem’s admin page and enable bridge or passthrough mode.

Q: Can I really use a $68 mini PC as a home router? Yes, with one honest caveat: it requires installing OPNsense or pfSense, which has a real learning curve. If you’re comfortable reading documentation and don’t mind spending an afternoon on setup, the performance-per-dollar is genuinely excellent. If you want plug-and-play simplicity, a consumer router is the better choice.

Q: Can I use my old router as an access point? Yes — almost any consumer router can function as an AP. Key steps: factory reset it, disable DHCP on it, assign it a static IP on your network, and connect via a LAN port (not the WAN port) to your switch. Using the WAN port is the most common mistake, and it breaks connectivity for every device connected to that AP.

Q: How do I know if I need a managed or unmanaged switch? For most home users — unmanaged is fine. You only need a managed switch if you want VLANs to segment IoT devices across physical ports, or if you’re running a prosumer setup with multiple PoE-powered APs. An unmanaged gigabit switch just works with zero configuration.

Q: Is it worth running ethernet to bedrooms that mostly just have phones and tablets? Debatable. For rooms that primarily host mobile devices, Wi-Fi is genuinely adequate. Prioritize ethernet runs for: desktop computers, smart TVs streaming 4K, gaming consoles, IP cameras, NVR systems, and home office workstations. Those get the most measurable benefit from a wired connection.

Q: How do I segment IoT devices with OPNsense if I don’t have a managed switch? You can create a wireless VLAN on your access point and assign it a separate SSID for IoT devices. OPNsense handles the routing between VLANs. You don’t strictly need a managed switch if your AP supports VLAN tagging — many do, including APs running OpenWRT or Ubiquiti firmware.

Q: What happens if I connect a switch to a switch? That’s called daisy-chaining and it’s perfectly normal. The key caveat: don’t create a loop — switch A connected to switch B via two cables simultaneously — without Spanning Tree Protocol enabled. A loop without STP will bring down your entire network almost immediately.

Q: Is ReadyShare over a router USB port safe for sensitive documents? It’s not encrypted in transit on the local network by default. For basic file sharing between trusted household members on a secured home network, it’s convenient and acceptable. For sensitive documents, consider a proper NAS with SMB encryption or a dedicated file server.

This guide covers the practical reality of home network upgrades — hardware selection, realistic costs, installation challenges, and long-term maintenance. If you’re running into a specific problem not covered here, the configuration decision tree above is a good starting point for diagnosis before you spend anything.

Related Reading:

#Home Improvement
